Asteras MAX 6×6

Drive Type

Pulsed movement with vibration – 6×6 System

Construction Material

Carbon Fiber Tube

Initial Length

2.50m – 2.80m

Head Type

T8 aluminum eccentric counterweights with 48 carbon fiber rods

Weight

2.95kg

Head RPM

2000 rpm @ 16V DC

Motor

14-16V/ 400W – 28-30V/ 400W *for 24V motor

Cable Length

13m

Output

200 – 250kg of olives

Average Consumption

8A / hour

Power Supply

Generator or battery (80A – 100A) with converter

B2B Login
SKU: 0935 Category:
Description

All Asteres are Lighter than ever for an Even more Comfortable Harvest

New Ergonomic Design

Innovative Aluminum Cam Construction for a Wider Beating Range and Maximum Performance

THE MOTION

With the NEW SYSTEM (Independent sphere movement) 4x4 and 6x6, it achieves:
  • Greater penetration into the densest parts of the olive tree
  • Minimization of damage to the fruits and the olive tree
  • Effortless harvesting as it transmits zero vibrations to the user.

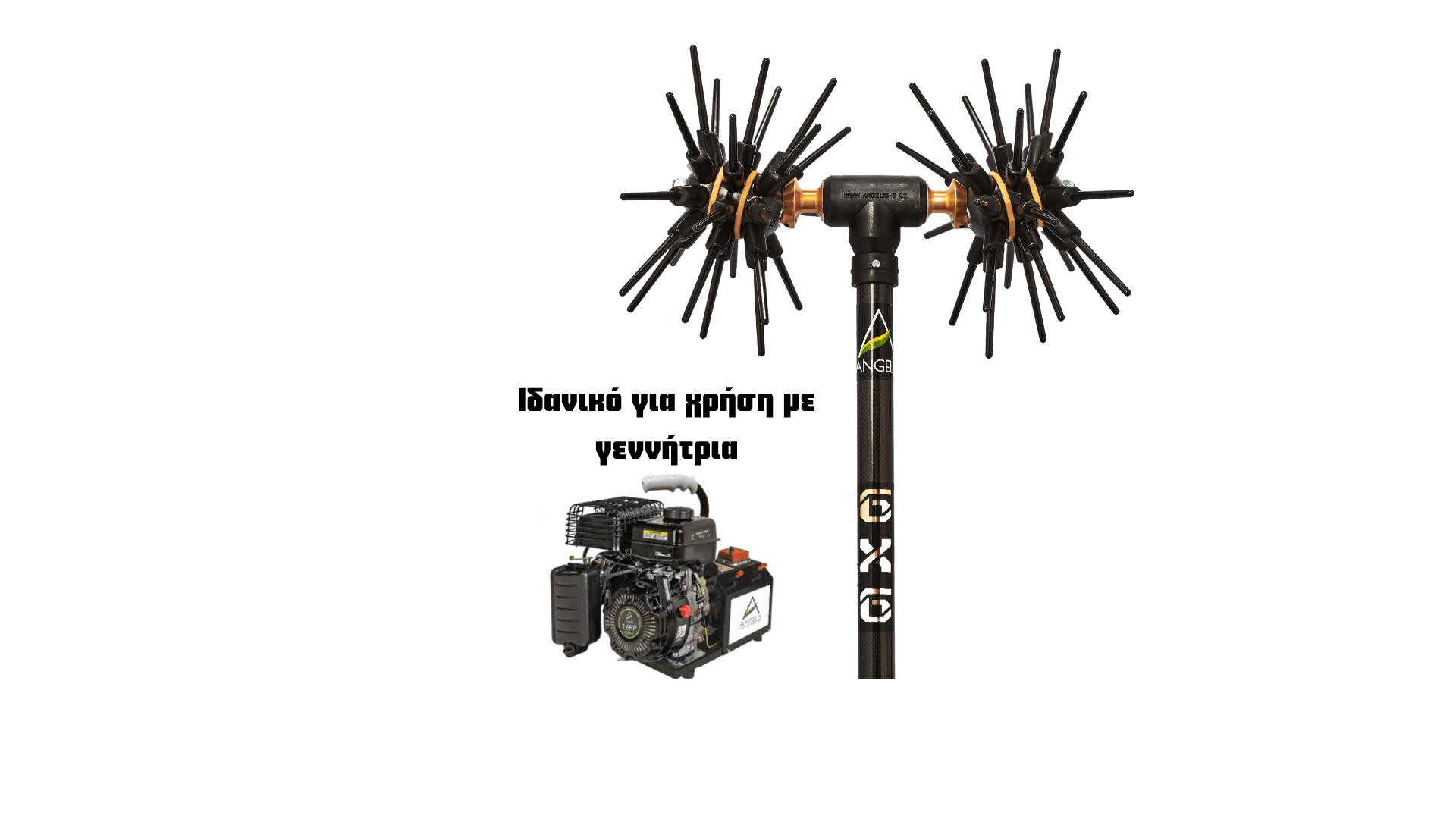

The Asteras Max olive harvester is a pulsating machine with 2 heads and 48 carbon fiber rods. The unique arrangement of the carbon fibers, combined with the wide-range balanced pulsating motion, achieves maximum performance without any damage to the tree.

THE HEAD

The ASTERAS MAX is 100% Greek-made with a patented mechanism of our own invention, which is an olive harvester with eccentric counterweights made of T8 aluminum
  • 48 carbon fiber rods,
  • 2 eccentric T8 aluminum counterweights
Building upon our company’s best seller, the ASTERAS CF, we further enhanced it by adding an extra rod holder with 8 rods for maximum harvesting range and even greater efficiency. The unique arrangement of the rods, combined with the flexibility and penetration of the head, results in the ultimate tool for olive harvesting.

THE MOTOR

  • Equipped with BOSCH DC electric motor 400W, delivering 2000 pulsating movements per minute at 16V
  • Includes ON-OFF switch 35A and a reducer converting head motion to pulsating movement
  • Also operates with a car battery (WITH CONVERTER ADDITION), with consumption of 10–12 A/HOUR
  • Comes with a 13-meter cable
Additional information
Type

15-19v 2.50m (carbon tube)

,

15-19v 2.78m(carbon tube)

,

24-30v 2.50m (carbon tube)

,

24-30v 2.78m(carbon tube)
