All types of Astera lighter than ever for even more relaxed harvesting

New ergonomic design

Innovative construction of aluminum cams for greater range of rodding and maximum performance

Type of movement

Pulse motion with vibration
Technology 4x4

Initial length

2,50m – 2,80m

Type of head

32 conical carbon fiber sticks

Weight

3,05kg

Rpm of the head

2000 rpm @ 16V DC

Motor

14-16V/ 400W

28-30V/ 400W *concerns 24V motors

Cable length

13m

Output

200 – 250kg olive seed

Average consumption

8A / hour

Power supply

Generator or battery (80A – 100A) with converter

MOVEMENT

With the NEW SYSTEM (Independent movement of the spheres) 4x4 is achieved:

  • It moves freely in the densest parts of the olive tree
  • Minimized damage to fruits and olives
  • Relaxed usage after transferring zero vibrations to the user.

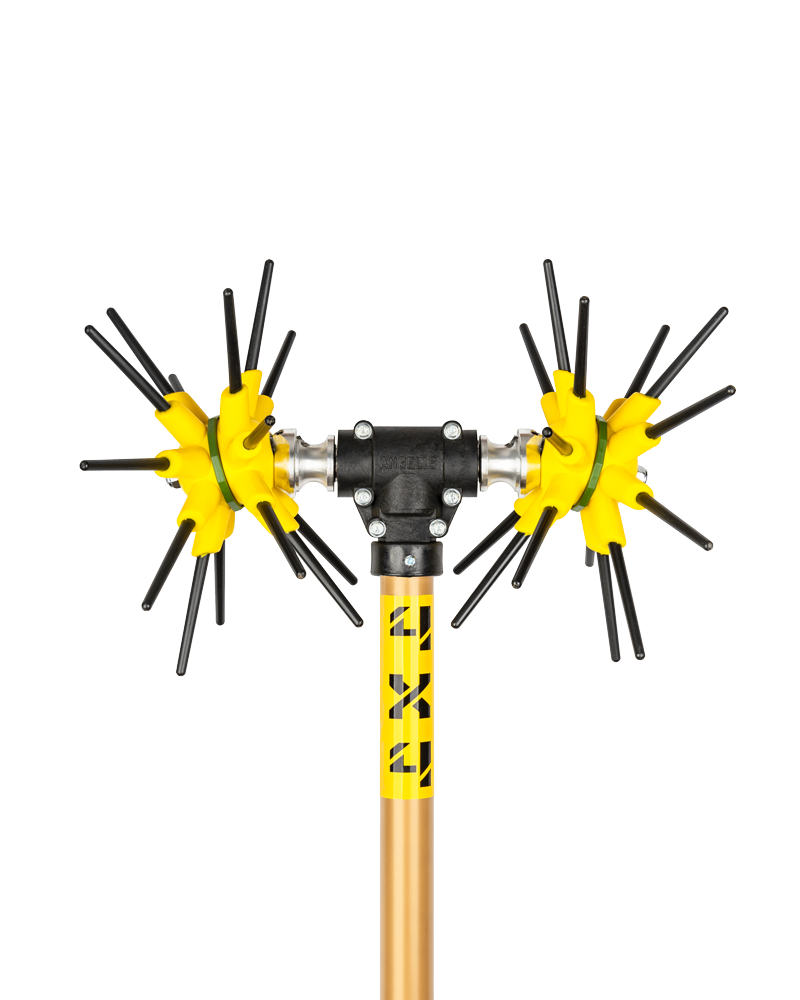

The olive harvester Asteras CF 4x4 is machine with 2 heads and 32 carbon fiber sticks.

The unique layout of carbon fiber along with the wide range balanced pulse motion, achieves maximum performance without the slightest damage on the tree

HEAD

Asteras CF* is a Greek olive harvester machine with counterweights T8 aluminum

  • 2 cams,
  • 32 conical carbon
  • Elastomeric material advanced technology
  • Steel gears

Zero damage
Absolute balance

*Ability to add the 4x4 system to all types of Astera

MOTOR

  • BOSCH electric DC 400W performance 2000 rpm @ 16V DC.
  • With switch οn-off 35A and a pulse converter.
  • It also works with a car battery (with the addition of a converter), with consumption 10-12A /hr.
  • Comes with cable 13 meter.
